Launcher进程启动流程

Launcher启动过程介绍

SystemServer进程在启动的过程中会启动PackageManagerService，PKMS启动后会将系统中的应用程序安装完成。

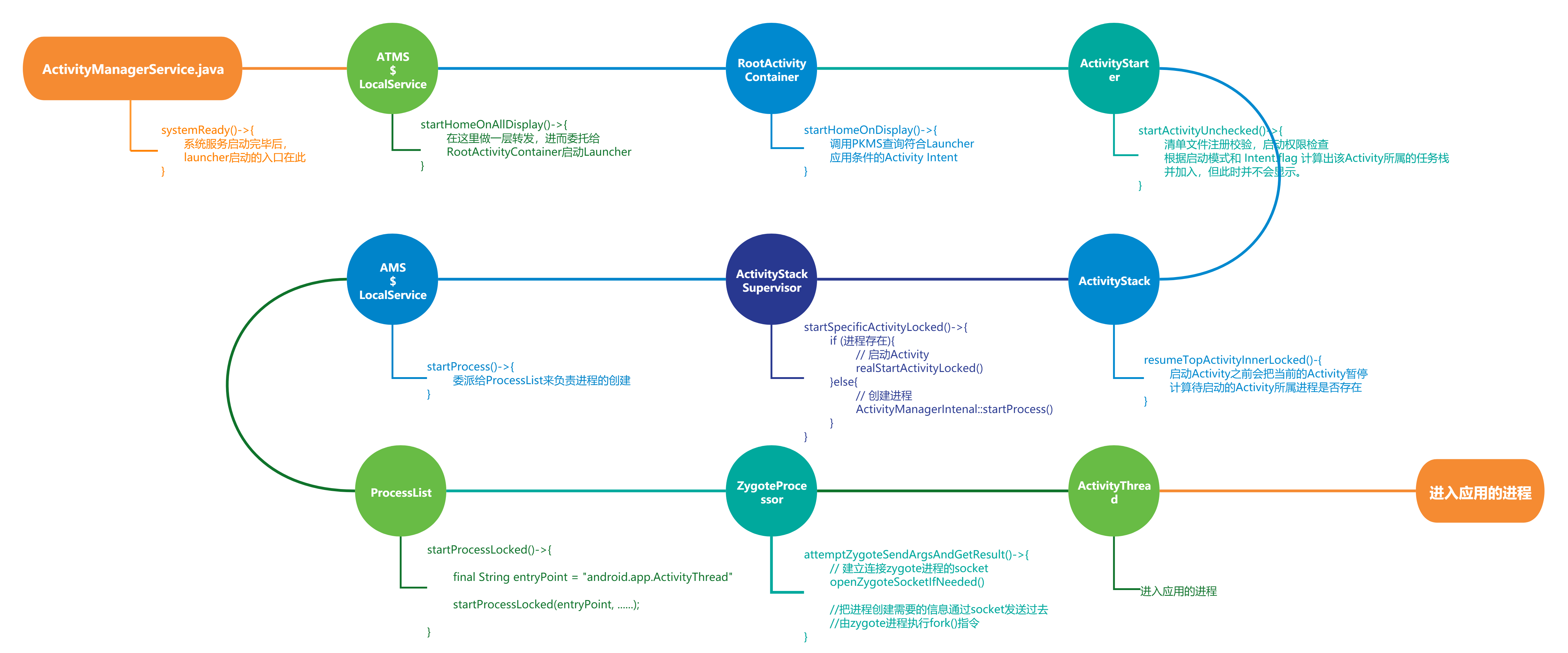

Launcher启动时序图

Android 11.0源码走读

ActivityManagerService

/**
 * Ready. Set. Go!
 */
public void systemReady(final Runnable goingCallback, @NonNull TimingsTraceAndSlog t) {

    ... 省略代码

        // 在所有屏幕上开启桌面程序
        if (bootingSystemUser) {
            mAtmInternal.startHomeOnAllDisplays(currentUserId, "systemReady");
        }

    ... 省略代码
}

查阅mAtmInternal对应的 ActivityTaskManagerInternal.java，这是一个抽象类，跟踪其继承者，可以发现其实现是 ATMS 的内部类 LocalService类

@Override
public boolean startHomeOnAllDisplays(int userId, String reason) {
    synchronized (mGlobalLock) {
        return mRootWindowContainer.startHomeOnAllDisplays(userId, reason);
    }
}

加锁交托给RootActivityContainer类，进而启动Launcher

RootActivityContainer

boolean startHomeOnAllDisplays(int userId, String reason) {
    boolean homeStarted = false;
    for (int i = getChildCount() - 1; i >= 0; i--) {
        final int displayId = getChildAt(i).mDisplayId;
        // 依次开启桌面程序
        homeStarted |= startHomeOnDisplay(userId, reason, displayId);
    }
    return homeStarted;
}

boolean startHomeOnDisplay(int userId, String reason, int displayId) {
    return startHomeOnDisplay(userId, reason, displayId, false /* allowInstrumenting */,
            false /* fromHomeKey */);
}

boolean startHomeOnDisplay(int userId, String reason, int displayId, boolean allowInstrumenting,
        boolean fromHomeKey) {

    ... 省略代码

        result |= startHomeOnTaskDisplayArea(userId, reason, taskDisplayArea,
                allowInstrumenting, fromHomeKey);

    ... 省略代码

    // 进入ActivityStartController控制类里进行Launcher应用启动
    mService.getActivityStartController().startHomeActivity(homeIntent, aInfo, myReason,
            taskDisplayArea);

    ... 省略代码
}

boolean startHomeOnTaskDisplayArea(int userId, String reason, TaskDisplayArea taskDisplayArea,
        boolean allowInstrumenting, boolean fromHomeKey) {

    ... 省略代码

        // 这里将调用PKMS查询符合Launcher应用条件的Activity Intent，这里先不考虑第二块屏幕
        aInfo = resolveHomeActivity(userId, homeIntent);

    ... 省略代码

}

ActivityStartController

void startHomeActivity(Intent intent, ActivityInfo aInfo, String reason,
        TaskDisplayArea taskDisplayArea) {

    ... 省略代码

    // 构建者模式
    mLastHomeActivityStartResult = obtainStarter(intent, "startHomeActivity: " + reason)
            .setOutActivity(tmpOutRecord)
            .setCallingUid(0)
            .setActivityInfo(aInfo)
            .setActivityOptions(options.toBundle())
            // 继续跟踪代码
            .execute();

    ... 省略代码
}

ActivityStarter.java

int execute() {
    try {
        ...省略代码

            res = executeRequest(mRequest);

        ...省略代码
    } finally {
        onExecutionComplete();
    }
}

private int executeRequest(Request request) {

    ... 省略代码

    mLastStartActivityResult = startActivityUnchecked(r, sourceRecord, voiceSession,
            request.voiceInteractor, startFlags, true /* doResume */, checkedOptions, inTask,
            restrictedBgActivity, intentGrants);
   ... 省略代码
}

private int startActivityUnchecked(final ActivityRecord r, ActivityRecord sourceRecord,
            IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,
            int startFlags, boolean doResume, ActivityOptions options, Task inTask,
            boolean restrictedBgActivity, NeededUriGrants intentGrants) {

    ... 省略代码

        result = startActivityInner(r, sourceRecord, voiceSession, voiceInteractor,
                startFlags, doResume, options, inTask, restrictedBgActivity, intentGrants);
   ... 省略代码
}

int startActivityInner(final ActivityRecord r, ActivityRecord sourceRecord,
        IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,
        int startFlags, boolean doResume, ActivityOptions options, Task inTask,
        boolean restrictedBgActivity, NeededUriGrants intentGrants) {

    // 设置初始状态
    setInitialState(r, options, inTask, doResume, startFlags, sourceRecord, voiceSession,
            voiceInteractor, restrictedBgActivity);

    // 根据启动模式和Intent.flag 计算出该Activity所属的任务栈并加入，记住此时不会显示
    computeLaunchingTaskFlags();

    ... 省略代码

            // 进入 RootActivityContainer 执行 resumeFocusedStacksTopActivities（恢复）
            mRootWindowContainer.resumeFocusedStacksTopActivities(
                    mTargetStack, mStartActivity, mOptions);

    ... 省略代码
}

RootActivityContainer.resumeFocusedStacksTopActivities

boolean resumeFocusedStacksTopActivities(
        ActivityStack targetStack, ActivityRecord target, ActivityOptions targetOptions) {

    // 栈超级管理者判断是否恢复状态
    if (!mStackSupervisor.readyToResume()) {
        return false;
    }

    boolean result = false;
    if (targetStack != null && (targetStack.isTopStackInDisplayArea()
            || getTopDisplayFocusedStack() == targetStack)) {
        // 回到Activity管理栈对象
        result = targetStack.resumeTopActivityUncheckedLocked(target, targetOptions);
    }

    ... 省略代码
}

进入 ActivityStack.java


boolean resumeTopActivityUncheckedLocked(ActivityRecord prev, ActivityOptions options) {
    ... 省略代码

        result = resumeTopActivityInnerLocked(prev, options);

    ... 省略代码
}

// 恢复顶部 Activity
private boolean resumeTopActivityInnerLocked(ActivityRecord prev, ActivityOptions options) {
    ... 省略代码

        // 启动新Activity之前把当前可见的Activity暂停
        pausing |= startPausingLocked(userLeaving, false /* uiSleeping */, next);

         ... 省略代码

        // 计算待启动的Activity所属进程是否存在
        if (next.attachedToProcess()) {
            next.app.updateProcessInfo(false /* updateServiceConnectionActivities */,
                    true /* activityChange */, false /* updateOomAdj */,
                    false /* addPendingTopUid */);
        } else if (!next.isProcessRunning()) {
            // Since the start-process is asynchronous, if we already know the process of next
            // activity isn't running, we can start the process earlier to save the time to wait
            // for the current activity to be paused.
            final boolean isTop = this == taskDisplayArea.getFocusedStack();
            mAtmService.startProcessAsync(next, false /* knownToBeDead */, isTop,
                    isTop ? "pre-top-activity" : "pre-activity");
        }

         ... 省略代码

        // Activity栈超级管理者启动指定Activity
        mStackSupervisor.startSpecificActivity(next, true, true);

    ... 省略代码
}

继续 ActivityStackSupervisor.java 走起

void startSpecificActivity(ActivityRecord r, boolean andResume, boolean checkConfig) {
    // Is this activity's application already running?
    final WindowProcessController wpc =
            mService.getProcessController(r.processName, r.info.applicationInfo.uid);

    boolean knownToBeDead = false;
    // 判断进程是否存在
    if (wpc != null && wpc.hasThread()) {
        try {
            // 启动Activity
            realStartActivityLocked(r, wpc, andResume, checkConfig);
            return;
        } catch (RemoteException e) {
            Slog.w(TAG, "Exception when starting activity "
                    + r.intent.getComponent().flattenToShortString(), e);
        }

        // If a dead object exception was thrown -- fall through to
        // restart the application.
        knownToBeDead = true;
    }

    r.notifyUnknownVisibilityLaunchedForKeyguardTransition();

    final boolean isTop = andResume && r.isTopRunningActivity();
    // 通过ATMS中向 Handler 发送消息来异步创建进程，防止调用AMS出现死锁
    mService.startProcessAsync(r, knownToBeDead, isTop, isTop ? "top-activity" : "activity");
}

从上面最后一行代码可看出，和10.0相比，考虑到调用AMS服务出现死锁的问题，通过向Handler发送消息来启动进程

ActivityTaskManagerService.startProcessAsync代码如下：

void startProcessAsync(ActivityRecord activity, boolean knownToBeDead, boolean isTop,
        String hostingType) {
    ... 省略代码

        final Message m = PooledLambda.obtainMessage(ActivityManagerInternal::startProcess,
                mAmInternal, activity.processName, activity.info.applicationInfo, knownToBeDead,
                isTop, hostingType, activity.intent.getComponent());
        mH.sendMessage(m);

     ... 省略代码
}

重点来看 ActivityManagerInternal::startProcess

进入 ActivityManagerInternal.java，发现startProcess方法是个抽象方法，这里利用归纳思想，一般源码后缀加上Internal标记内部类，其类内部抽象方法的实现一般都是在其去掉Internal的类里的LocalService内部类中。我们试一试，查找 ActivityManager，发现并没有，那与此极为相似的类还有哪些，ActivityManagerService？然后我们进入查找，Good job!找到了。挂一下源码继续分析

ActivityManagerService#LocalService

@Override
public void startProcess(String processName, ApplicationInfo info, boolean knownToBeDead,
        boolean isTop, String hostingType, ComponentName hostingName) {

    ... 省略代码
            startProcessLocked(processName, info, knownToBeDead, 0 /* intentFlags */,
                    new HostingRecord(hostingType, hostingName, isTop),
                    ZYGOTE_POLICY_FLAG_LATENCY_SENSITIVE, false /* allowWhileBooting */,
                    false /* isolated */, true /* keepIfLarge */);
    ... 省略代码
}

final ProcessRecord startProcessLocked(String processName,
        ApplicationInfo info, boolean knownToBeDead, int intentFlags,
        HostingRecord hostingRecord, int zygotePolicyFlags, boolean allowWhileBooting,
        boolean isolated, boolean keepIfLarge) {

    // 委托给 ProcessList 来负责进程的创建
    return mProcessList.startProcessLocked(processName, info, knownToBeDead, intentFlags,
            hostingRecord, zygotePolicyFlags, allowWhileBooting, isolated, 0 /* isolatedUid */,
            keepIfLarge, null /* ABI override */, null /* entryPoint */,
            null /* entryPointArgs */, null /* crashHandler */);
}

继续深入 ProcessList.java

boolean startProcessLocked(ProcessRecord app, HostingRecord hostingRecord,
        int zygotePolicyFlags, boolean disableHiddenApiChecks, boolean disableTestApiChecks,
        boolean mountExtStorageFull, String abiOverride) {

    ... 省略代码

        // Start the process.  It will either succeed and return a result containing
        // the PID of the new process, or else throw a RuntimeException.
        final String entryPoint = "android.app.ActivityThread";

        return startProcessLocked(hostingRecord, entryPoint, app, uid, gids,
                runtimeFlags, zygotePolicyFlags, mountExternal, seInfo, requiredAbi,
                instructionSet, invokeWith, startTime);

    ... 省略代码
}

boolean startProcessLocked(HostingRecord hostingRecord, String entryPoint, ProcessRecord app,
        int uid, int[] gids, int runtimeFlags, int zygotePolicyFlags, int mountExternal,
        String seInfo, String requiredAbi, String instructionSet, String invokeWith,
        long startTime) {

    ... 省略代码

            // 开启进程创建
            final Process.ProcessStartResult startResult = startProcess(hostingRecord,
                    entryPoint, app,
                    uid, gids, runtimeFlags, zygotePolicyFlags, mountExternal, seInfo,
                    requiredAbi, instructionSet, invokeWith, startTime);
            handleProcessStartedLocked(app, startResult.pid, startResult.usingWrapper,
                    startSeq, false);

    ... 省略代码
}

private Process.ProcessStartResult startProcess(HostingRecord hostingRecord, String entryPoint,
        ProcessRecord app, int uid, int[] gids, int runtimeFlags, int zygotePolicyFlags,
        int mountExternal, String seInfo, String requiredAbi, String instructionSet,
        String invokeWith, long startTime) {

    ... 省略代码

        // 命中不同情境 zygote
            // 这里直接进入AppZygote.java，看getProcess()
            // 会返回与app zygote相关联的zygote进程（如果不在运行就会创建）：ChildZygoteProcess -> ZygoteProcess 在此调用start函数
            // 这个 entryPoint 参数至关重要，follow it
            startResult = appZygote.getProcess().start(entryPoint,
                    app.processName, uid, uid, gids, runtimeFlags, mountExternal,
                    app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
                    app.info.dataDir, null, app.info.packageName,
                    /*zygotePolicyFlags=*/ ZYGOTE_POLICY_FLAG_EMPTY, isTopApp,
                    app.mDisabledCompatChanges, pkgDataInfoMap, whitelistedAppDataInfoMap,
                    false, false,
                    new String[]{PROC_START_SEQ_IDENT + app.startSeq});

    ... 省略代码
}

进入 ZygoteProcess.java

public final Process.ProcessStartResult start(@NonNull final String processClass,
                                              final String niceName,
                                              int uid, int gid, @Nullable int[] gids,
                                              int runtimeFlags, int mountExternal,
                                              int targetSdkVersion,
                                              @Nullable String seInfo,
                                              @NonNull String abi,
                                              @Nullable String instructionSet,
                                              @Nullable String appDataDir,
                                              @Nullable String invokeWith,
                                              @Nullable String packageName,
                                              int zygotePolicyFlags,
                                              boolean isTopApp,
                                              @Nullable long[] disabledCompatChanges,
                                              @Nullable Map<String, Pair<String, Long>>
                                                      pkgDataInfoMap,
                                              @Nullable Map<String, Pair<String, Long>>
                                                      whitelistedDataInfoMap,
                                              boolean bindMountAppsData,
                                              boolean bindMountAppStorageDirs,
                                              @Nullable String[] zygoteArgs) {
    // TODO (chriswailes): Is there a better place to check this value?
    if (fetchUsapPoolEnabledPropWithMinInterval()) {
        informZygotesOfUsapPoolStatus();
    }

    try {
        // 从Zygote孵化开始一个新进程
        return startViaZygote(processClass, niceName, uid, gid, gids,
                runtimeFlags, mountExternal, targetSdkVersion, seInfo,
                abi, instructionSet, appDataDir, invokeWith, /*startChildZygote=*/ false,
                packageName, zygotePolicyFlags, isTopApp, disabledCompatChanges,
                pkgDataInfoMap, whitelistedDataInfoMap, bindMountAppsData,
                bindMountAppStorageDirs, zygoteArgs);
    } catch (ZygoteStartFailedEx ex) {
        Log.e(LOG_TAG,
                "Starting VM process through Zygote failed");
        throw new RuntimeException(
                "Starting VM process through Zygote failed", ex);
    }
}

private Process.ProcessStartResult startViaZygote(@NonNull final String processClass,
                                                  @Nullable final String niceName,
                                                  final int uid, final int gid,
                                                  @Nullable final int[] gids,
                                                  int runtimeFlags, int mountExternal,
                                                  int targetSdkVersion,
                                                  @Nullable String seInfo,
                                                  @NonNull String abi,
                                                  @Nullable String instructionSet,
                                                  @Nullable String appDataDir,
                                                  @Nullable String invokeWith,
                                                  boolean startChildZygote,
                                                  @Nullable String packageName,
                                                  int zygotePolicyFlags,
                                                  boolean isTopApp,
                                                  @Nullable long[] disabledCompatChanges,
                                                  @Nullable Map<String, Pair<String, Long>>
                                                          pkgDataInfoMap,
                                                  @Nullable Map<String, Pair<String, Long>>
                                                          whitelistedDataInfoMap,
                                                  boolean bindMountAppsData,
                                                  boolean bindMountAppStorageDirs,
                                                  @Nullable String[] extraArgs)
                                                  throws ZygoteStartFailedEx {
    // args For Zygote
    // 单独指出zygote进程参数包含entryPoint(android.app.ActivityThread)
    argsForZygote.add(processClass);

    // 加锁
    synchronized(mLock) {
        // The USAP pool can not be used if the application will not use the systems graphics
        // driver.  If that driver is requested use the Zygote application start path.
        // 如果请求该驱动程序，需使用Zygote应用程序启动路径（也就是entryPoint）。
        return zygoteSendArgsAndGetResult(openZygoteSocketIfNeeded(abi),
                                          zygotePolicyFlags,
                                          argsForZygote);
    }
}

// 如果必须，尝试打开zygote的套接字
private ZygoteState openZygoteSocketIfNeeded(String abi) throws ZygoteStartFailedEx {
    try {
        // 将进程创建需要的信息通过socket发送过去，由zygote进程执行fork()指令
        attemptConnectionToPrimaryZygote();

        if (primaryZygoteState.matches(abi)) {
            return primaryZygoteState;
        }

        if (mZygoteSecondarySocketAddress != null) {
            // The primary zygote didn't match. Try the secondary.
            attemptConnectionToSecondaryZygote();

            if (secondaryZygoteState.matches(abi)) {
                return secondaryZygoteState;
            }
        }
    } catch (IOException ioe) {
        throw new ZygoteStartFailedEx("Error connecting to zygote", ioe);
    }

    throw new ZygoteStartFailedEx("Unsupported zygote ABI: " + abi);
}

Launcher启动流程关键类介绍

ActivityManagerService

Activity生命周期调度的服务类

ActivityTaskManagerService

剥离原先在AMS中有关Activity管理工作，到现有ATMS类中

RootActivityContainer

调用PKMS去查询手机系统中已安装的所有的应用，哪一个是符合launcher启动标准，去得到一个Intent对象，得到Intent对象之后交由ActivityStarter启动类进行进一步的启动工作。

ActivityStarter

做启动之前的各项检查，比如是否有在清单文件中注册,Activity是否有权限启动等等。

ActivityRecord

在Activity启动的时候，涉及到Activity进栈、出栈操作，这在服务端是拿不到Activity的实例的，因此ActivityRecord是在Server端对Activity的映射，里面记录了Activity的所有信息。

TaskRecord

任务栈，里面记录一个或多个ActivityRecord实例

ActivityStack

任务栈管理者角色，当一个应用运行时，可能有一个或者多个任务栈，这时该类作用就体现了，主要用来管理回退栈。

ActivityStackSupervisor

手机系统管理多个应用的任务栈超管角色: 管理多个ActivityStack对象。即管理Launcher和非launcher应用的ActivityStack实例。

ProcessList

把原先在AMS中有关启动进程的工作剥离至此

ZygoteProcess

建立起跟Zygote进程的socket连接，并把创建进程所需要的的参数传递过去。
